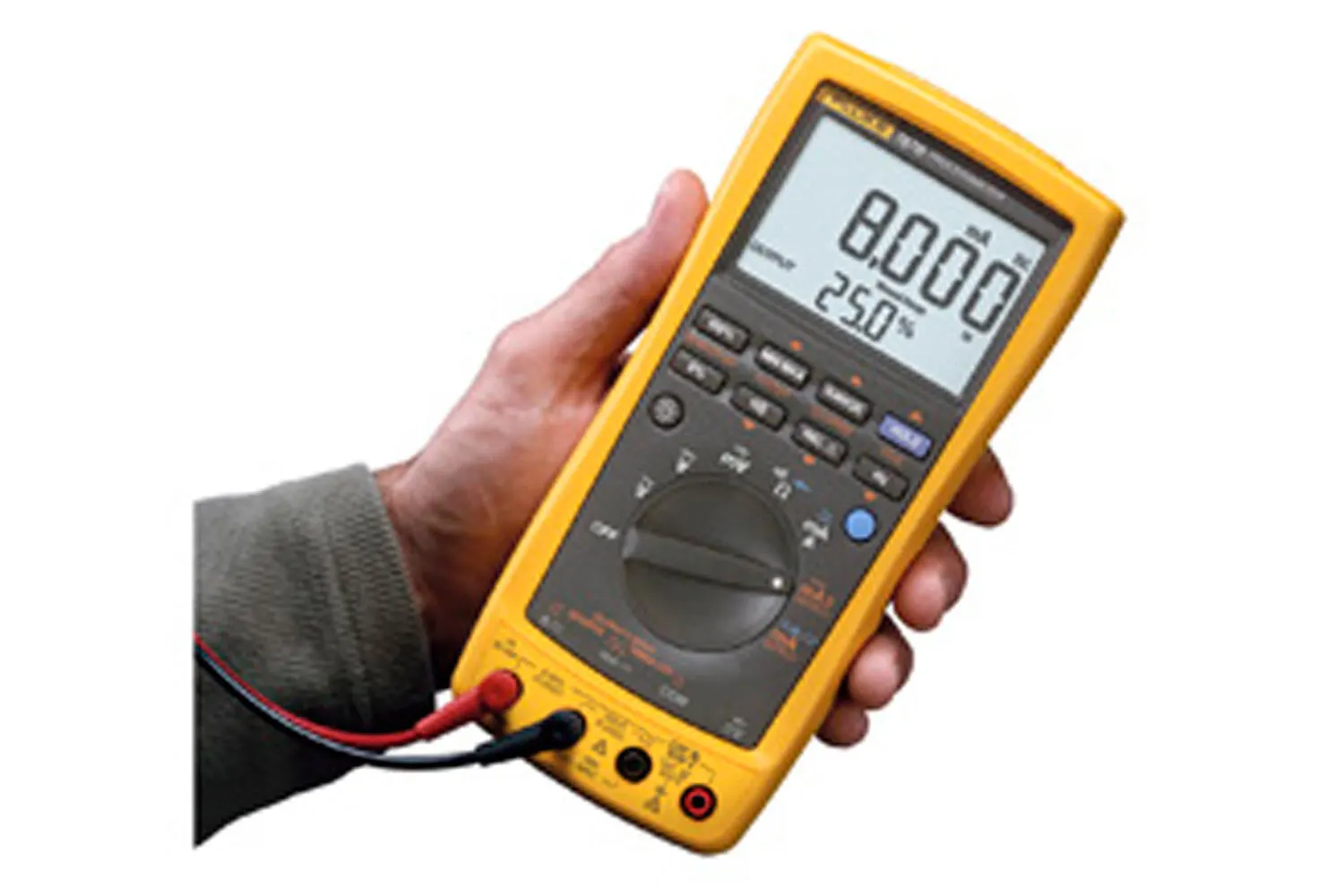

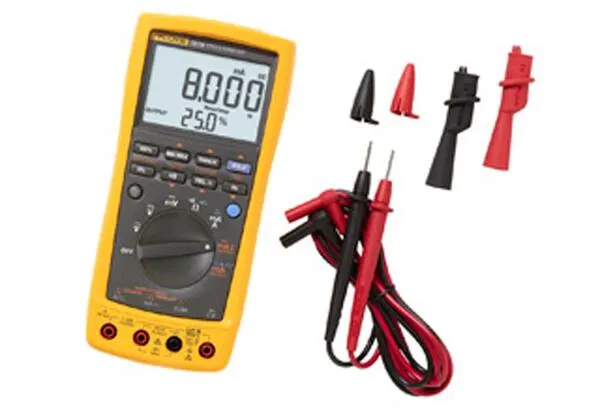

Fluke 787B Process Meter

Fluke 787B Process Meter | Fluke 787B Process Meter adalah penganti Fluke 787 ProcessMeter ( Discontinue )

Fluke 787B ProcessMeter™ menggandakan kapabilitas pemecahan masalah dengan menggabungkan kekuatan multimeter digital yang dinilai aman dan kalibrator loop mA ke dalam satu alat pengujian ringkas. Berdasarkan kapabilitas pengukuran tepercaya dari Fluke 87 DMM, 787B menambahkan kemampuan untuk mengukur, mencari sumber, dan mensimulasikan mA dengan akurasi dan resolusi yang Anda harapkan dari kalibrator loop mA Fluke, memberi Anda alat ideal untuk pemecahan masalah dan mengalibrasi aplikasi loop arus. Dengan kompatibilitas aplikasi seluler Fluke Connect® dan perangkat lunak desktop, teknisi dapat memantau, mencatat, dan membagikan data secara nirkabel dari lapangan dengan timnya kapan saja, dari mana saja*.

JAVA SURVEY INDO adalah Distributor & supplier terpercaya di Indonesia.

Fluke 787B Process Meter | Fluke 787B Process Meter adalah penganti Fluke 787 ProcessMeter ( Discontinue )

The Fluke 787B ProcessMeter™ doubles your troubleshooting capabilities by combining the power of a safety-rated digital multimeter and a mA loop calibrator into one compact test tool. Building on the trusted measurement capabilities of the Fluke 87 DMM, the 787B adds the ability to measure, source, and simulate mA with the accuracy and resolution you expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications. With Fluke Connect® mobile app and desktop software compatibility, technicians can monitor, log, and share data wirelessly from the field with their team anytime, anywhere*.

*Requires a Fluke IR3000FC module (not included). Not all models are available in all countries. Check with your local Fluke representative.

Features Fluke 787B Process Meter :

20 mA dc current source/measurement/simulation
Simultaneous mA reading and % scale
The DMM is designed to meet the 1000 volt IEC 61010 CAT III and 600 V CAT IV standards.
Fluke Connect® compatibility for wireless data logging (with IR3000FC module)*
Precision 1000 V, true rms 440 mA digital multimeter
Frequency measurement up to 20 kHz
Min/Max/Average/Hold/Relative Modes
Diode testing and continuity beeper
Manual steps (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
Accessible external battery for easy battery replacement

Specification Fluke 787B Process Meter :

Measurement function	Range and resolution	Best accuracy (% measurement result + LSD)
V dc	400.0 mV, 4,000 V, 40.00 V, 400.0 V, 1000 V	0.1% + 1
V ac (true rms)	400.0 mV, 4,000 V, 40.00 V, 400.0 V, 1000 V	0.7% + 2
mA dc	30,000 mA	05% + 2
A dc	1,000 A (0.440 A continuous)	0.2% + 2
A ac	1,000 A (0.440 A continuous)	1% + 2
Obstacle	400.0 Ohm, 4,000 k, 40.00 k, 400.0 k, 4.0 M, 40 M	0.2% + 1
Frequency (0.5 Hz to 20 kHz)	199.99 Hz, 1999.9 Hz, 19.999 kHz	,005% + 1
Diode test	2,000 V (showing diode voltage drop)	2% + 1
Continuity	Beep for resistance < about 100 ohms
Output function	Range and resolution	Driving capabilities	Accuracy (% of time span)
DC current output (Internal battery operation)	0,000 to 20,000 mA or 4,000 to 20,000 mA, (selectable at power-up) Overrange up to 24,000 mA	Compliance 24 V or, 1,200 ohms, @ 20 mA	0.05%
DC current simulation (Ext. loop power supply 15 V to 48 V)	0,000 to 20,000 mA or 4,000 to 20,000 mA, (selectable at power-up) Overrange up to 24,000 mA	1000 ohms @ 20 mA	0.05%
Current adjustment mode	Manual: Coarse, Fine, 25%, and 100% Steps
	Automatic: Slow Ramp, Fast Ramp, 25%
Temperature range 18°C to 28°C, for one year after calibration
General specifications
Maximum voltage applies between the plug and earth ground	1000 V RMS
Storage temperature	-40°C to 60°C
Operating temperature	-20°C to 55°C
Temperature coefficient	0.05 x (certain accuracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity	95% to 30 °C; 75% to 40 °C; 45% to 50 °C; 35% to 55 °C
Vibration	Random, 2 g, 5-500 Hz
Shock	1 meter drop test
Security	IEC61010-1, Pollution Level 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V
Size (HxWxL)	50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)
Heavy	600 g (1.3 lbs)
Battery	Four AA alkaline batteries
Battery life	Typically 140 hours (measurement), 10 hours (12 mA source search)
Warranty	Three years

Fluke 787B Datasheet
