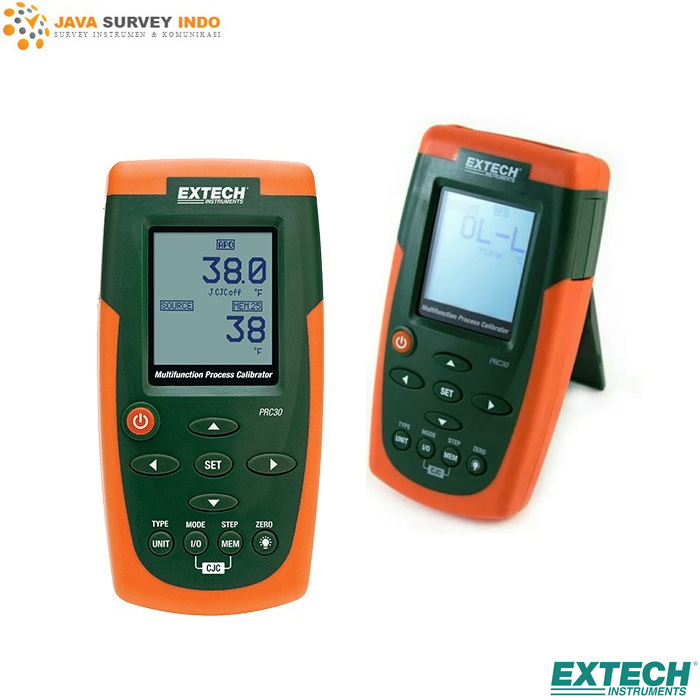

Extech PRC30 Multifunction Process Calibrator
Features Extech PRC30 Multifunction Process Calibrator
- 0 to 24mA (-25 to 125%) readout
- 24V DC power source for 2-wire current loop
- 0 to 20V DC calibration source
- Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
- CJC – Cold Junction Compensation function
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix backlit LCD
| Status |
Hubungi 0813-9895-5475 |
|---|---|
| Kode Produk |
PRC30 |
| Brand |
Extech |
Description
Extech PRC30 Multifunction Process Calibrator
Precision Current & Voltage & Thermocouple Source/Measure Calibrator
The PRC30 is a Multifunction Process Calibrator. This calibrator provides precision sourcing and measurements for thermocouples (eight types), current (mA), and voltage (mV and V) devices. Featuring 24 volt loop power, five user adjustable calibration presets, and temperature output in Fahrenheit, Celsius, and millivolts. Product includes test leads, alligator clips, thermocouple calibration cable, universal calibration cable, 100-240V AC universal adapter with 4 plugs, AA batteries, hard case, and user manual.
Multifunction Process Calibrator
Model : PRC30
- 0 to 24mA (-25 to 125%) readout
- 24V DC power source for 2-wire current loop
- 0 to 20V DC calibration source
- Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
- CJC – Cold Junction Compensation function
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix backlit LCD
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Displays output in terms of millivolts or temperature based on thermocouple tables
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports and mini thermocouple connector
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
- Complete with test leads, alligator clips, calibration cables, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case
Specification Extech PRC30 Multifunction Process Calibrator :
| Specifications | Range | Basic Accuracy |
|---|---|---|
| DC Source | ||
| Current | 0 to 24mA, -25% to +125% | ±(0.01% + 1 digit) |
| Max. Load | 1000Ω @ 24mA | |
| Voltage | 0 to 2000mV, 0 to 20V | ±(0.01% + 1 digit) |
| mV/Temp | -5 to 55mV | ±(0.01% + 1 digit) |
| Type J | -58 to 1832°F (-50 to 1000°C) | ±(0.05% + 2°F or 1°C) |
| Type K | -58 to 2498°F (-50 to 1370°C) | ±(0.05% + 2°F or 1°C) |
| Type T | -184 to 752°F (-120 to 400°C) | ±(0.05% + 2°F or 1°C) |
| Type E | -58 to 1382°F (-50 to 750°C) | ±(0.05% + 2°F or 1°C) |
| Type C, R, S | 32 to 3182°F (0 to 1750°C) | ±(0.05% + 2°F or 1°C) |
| Type N | -58 to 2372°F (-50 to 1300°C) | ±(0.05% + 2°F or 1°C) |
| DC Measure | ||
| Current | 0 to 50mA, -25% to +230% | ±(0.01% + 1 digit) |
| Voltage | 0 to 1999mV / 2 to 20V | ±(0.01% + 1 digit) / auto range |
| mV/Temp | -10 to 60mV | ±(0.01% + 1 digit) |
| Type J | -58 to 1832°F (-50 to 1000°C) | ±(0.05% + 1.8°F or 1°C) |
| Type K | -58 to 2498°F (-50 to 1370°C) | ±(0.05% + 1.8°F or 1°C) |
| Type T | -184 to 752°F (-120 to 400°C) | ±(0.05% + 1.8°F or 1°C) |
| Type E | -58 to 1382°F (-50 to 750°C) | ±(0.05% + 1.8°F or 1°C) |
| Type C, R, S | 32 to 3182°F (0 to 1750°C) | ±(0.05% + 2°F or 1°C) |
| Type N | -58 to 2372°F (-50 to 1300°C) | ±(0.05% + 2°F or 1°C) |
| Loop Power | 24V | |
| Dimensions | 6.3” x 3.2” x 1.7” (159 x 80 x 44mm) | |
| Weight | 8.4oz (236g) | |
Extech PRC30 Datasheet
Extech PRC30 DatasheetPT. JAVA SURVEY INDO adalah distributor dan Supplier Extech PRC30 Multifunction Process Calibrator di Jawa Barat & Jakarta dan juga menjual Brand EXTECH diantaranya Extech VB450, Extech SD900, Extech MO260, Extech MO57, Extech 3000A, Extech MN35, Extech PRC30, Extech RD200, Extech RF40, Extech RH35, Extech RF153, Extech RPM33, Extech RHT35, Extech SD500, Extech LT45, Extech FL700, Extech EX900, Extech DT500 dll. lihat produk kami lainnya di sini di sini KMT, SGI, SGM atau hubungi kami lewat Whatsapp 0813-9895-5475. atau via email javasurveyindo@gmail.com sales.syariftama@gmail.com.
